Institute of Physics Ministry of Science and Education Republic of Azerbaijan

THE EFFECT OF IRON DOPING ON THE ELECTRONIC BAND STRUCTURE AND MAGNETIC BEHAVIOR OF (11,0) CARBON NANOTUBES

Kh.A. Hasanova

ABSTRACT

In this study, the electronic and magnetic properties of zigzag (11,0) single-walled carbon nanotubes (SWCNTs) were comprehensively investigated within the framework of density functional theory (DFT) under the influence of iron (Fe) doping. The pristine (11,0) nanotubes exhibited semiconducting behavior with an energy band gap of 0.835 eV. Upon Fe doping, the band gap significantly decreased to 0.14 eV, indicating enhanced electronic conductivity and a transition tendency toward a semiconductor–metal boundary. However, DFT analyses revealed that although the interaction between Fe atoms and the carbon nanotube structure introduced new electronic states near the Fermi level, no magnetic moment was formed, and no spin asymmetry was observed. These results demonstrate that Fe doping has a pronounced effect on the electronic band structure of carbon nanotubes but is insufficient to induce magnetic behavior. Consequently, Fe-doped carbon nanotubes can serve as highly conductive semiconducting materials suitable for nanoelectronic and thermoelectric applications, though their use in spintronic devices may be limited.

Keywords: DFT, Iron doping, Carbon nanotubes, Electronic band structure, Density of states (DOS)
DOI:10.70784/azip.2.2025407

Received: 23.10.2025
Internet publishing: 31.10.2025 AJP Fizika A 2025 04 az p.07-10

AUTHORS & AFFILIATIONS

1. Azerbaijan State Oil and Industry University, 20 Azadlig ave. Baku, AZ 1010, Azerbaijan
2. Institute of Physics Ministry of Science and Education Republic of Azerbaijan, 131 H.Javid ave, Baku, AZ-1073, Azerbaijan
E-mail: hasanovakhayala.a@gmail.com

Graphics and Images

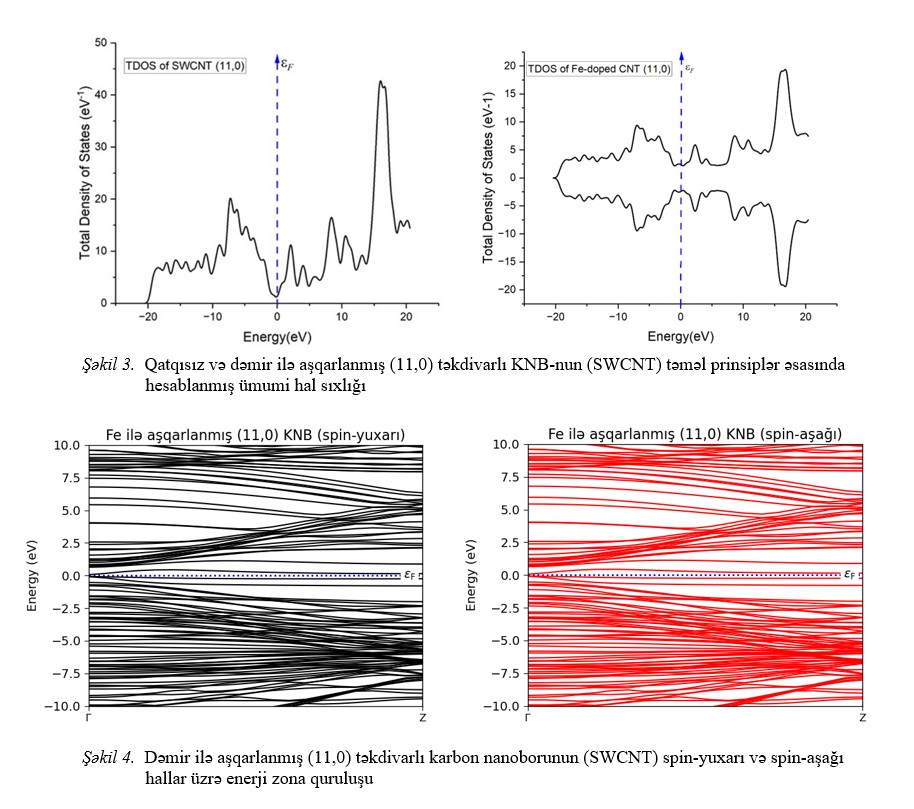

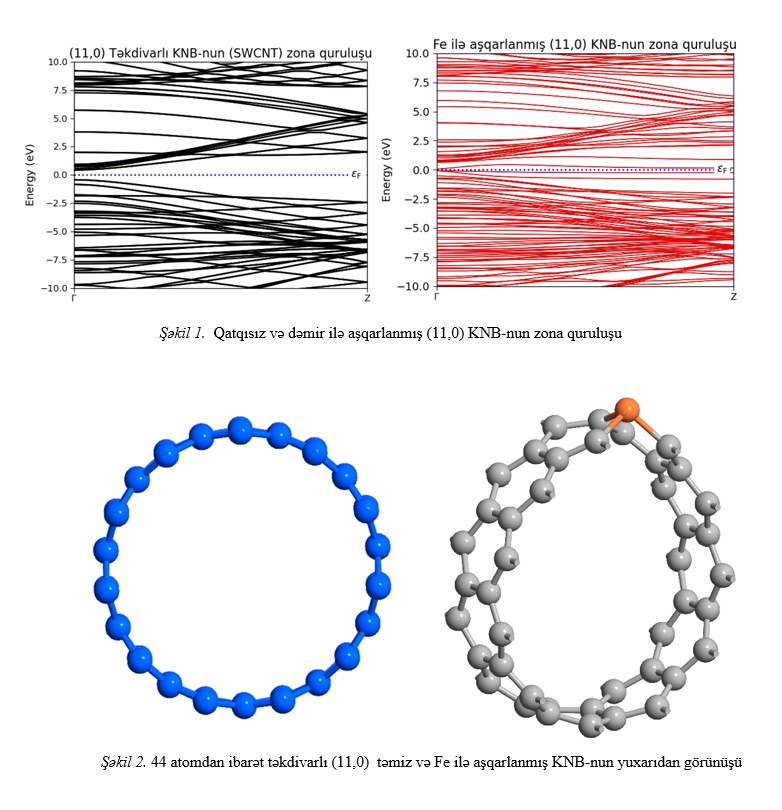

Fig.1-2 Fig.3-4

[1]   S. Iijima. Helical microtubules of graphitic carbon. Nature, 354(6348), 56–58, 1991.
[2]   M.S. Dresselhaus, G. Dresselhaus, P. Avouris (Eds.). Carbon nanotubes: synthesis, structure, properties, and applications. Springer, 2001.
[3]   E. Pop, D. Mann, Q. Wang, K. Goodson, H. Dai. Thermal conductance of an individual single-wall carbon nanotube above room temperature. Nano Letters, 6(1), 96–100, 2006.
[4]   R. Saito, G. Dresselhaus, M.S. Dresselhaus. Physical properties of carbon nanotubes, Imperial College Press, 1998.
[5]   V.N. Jafarova, D. Dey Roy, K.A. Hasanova, M.L. Barhalescu, I.C. Scurtu. Device-level modelling for predicting the total density of states of single-walled CNTs with increasing chirality: a fusion of ab initio modeling and a machine learning framework. Nanoscale, 17, 23549–23569, 2025.
[6]   K.J. Lee, H.J. Kim, M.J. Choi, S.H. Park, Y.K. Jung. Doping effects of carbon nanotubes and graphene on the needle-punched carbon/carbon (C/C) matrix, Materials, 16(20), 6801, 2023.
[7]   B. Kumanek, G. Stando. Doping engineering of single-walled carbon nanotubes by various nitrogen-bearing compounds. ACS Applied Materials & Interfaces, 14(21), 24597–24607, 2022.
[8]   K.Z. Milowska, J.A. Majewski. Effective doping of single-walled carbon nanotube films: enhancement of electrical and thermoelectric properties. Synthetic Metals, 285, 117029, 2022.
[9]   T.M.G. Mohiuddin, M.A. Khan, M.A. Rehman, M. Hasan. Electronic and magnetic properties of Fe-decorated single-walled carbon nanotubes: a DFT study. Journal of Magnetism and Magnetic Materials, 407, 84–91, 2016.
[10]  S. Zhou, Y. Liu, X. Chen, J. Wang, Q. Zhang. Advances and outlooks for carbon nanotube-based thermoelectric materials and devices. Advanced Materials, 37(12), 2204569, 2025.
[11]  Y.K. Chen, R. Zhao, J. Wen. Theoretical studies of transition-metal-doped single-walled carbon nanotubes. The Journal of Physical Chemistry C Vol 115, Issue 19, 2011.
[12]  S. Zhang, J. Li, X. Wu, X. C. Zeng. Electronic structure and magnetic properties of transition metal-doped carbon nanotubes: a first-principles study. Physica B: Condensed Matter, 405(5), 1220–1225, 2010.
[13]  G. Pilania, C. Wang, X. Jiang, S. Rajasekaran, R. Ramprasad. Accelerating materials property predictions using machine learning. *Scientific Reports,* 3, 2810, 2013.
